Products Description
High Force Electric Linear Actuator is a high-performance drive unit that converts electrical energy into linear reciprocating motion. It consists of core components including a motor, reduction mechanism, lead screw and control system. Boasting high thrust, adjustable stroke, smooth operation and fast response, it enables precise push-pull control under various working conditions. It can replace traditional hydraulic and pneumatic equipment, and supports forward and reverse rotation as well as multi-point synchronous control. Equipped with built-in overload protection and limit locking functions, it operates quietly and requires minimal maintenance. It is widely used in industrial automation, stage equipment, medical devices, smart homes and other fields, making it an ideal choice for modern linear drive systems.

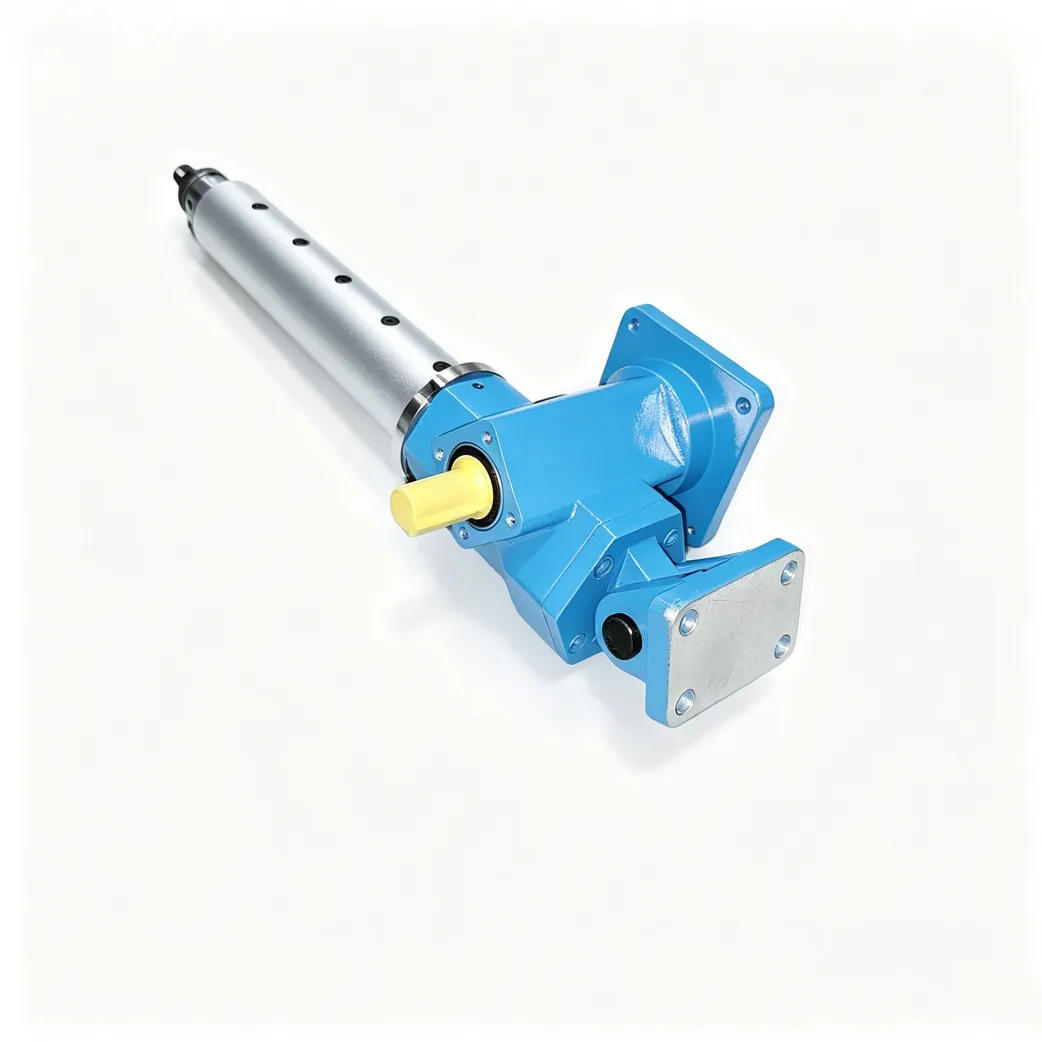

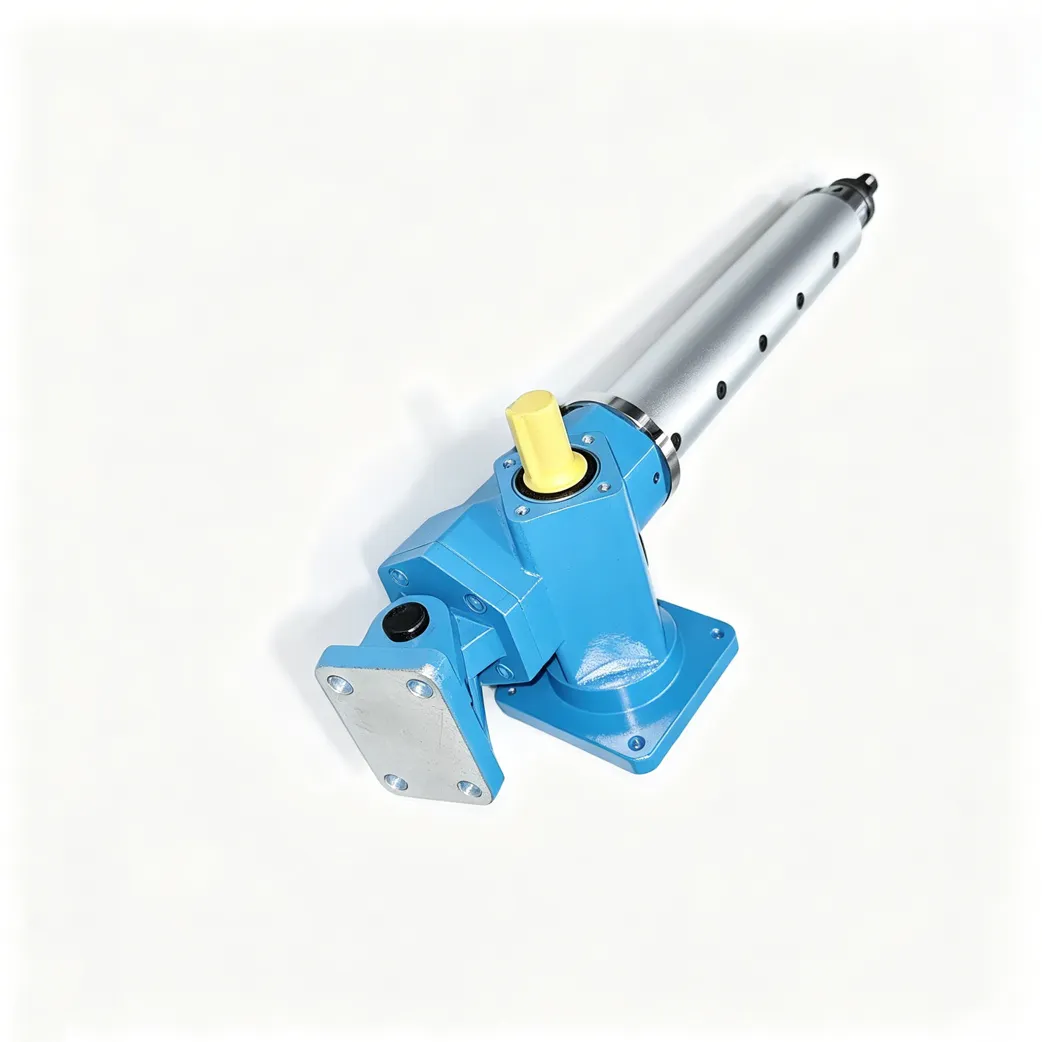

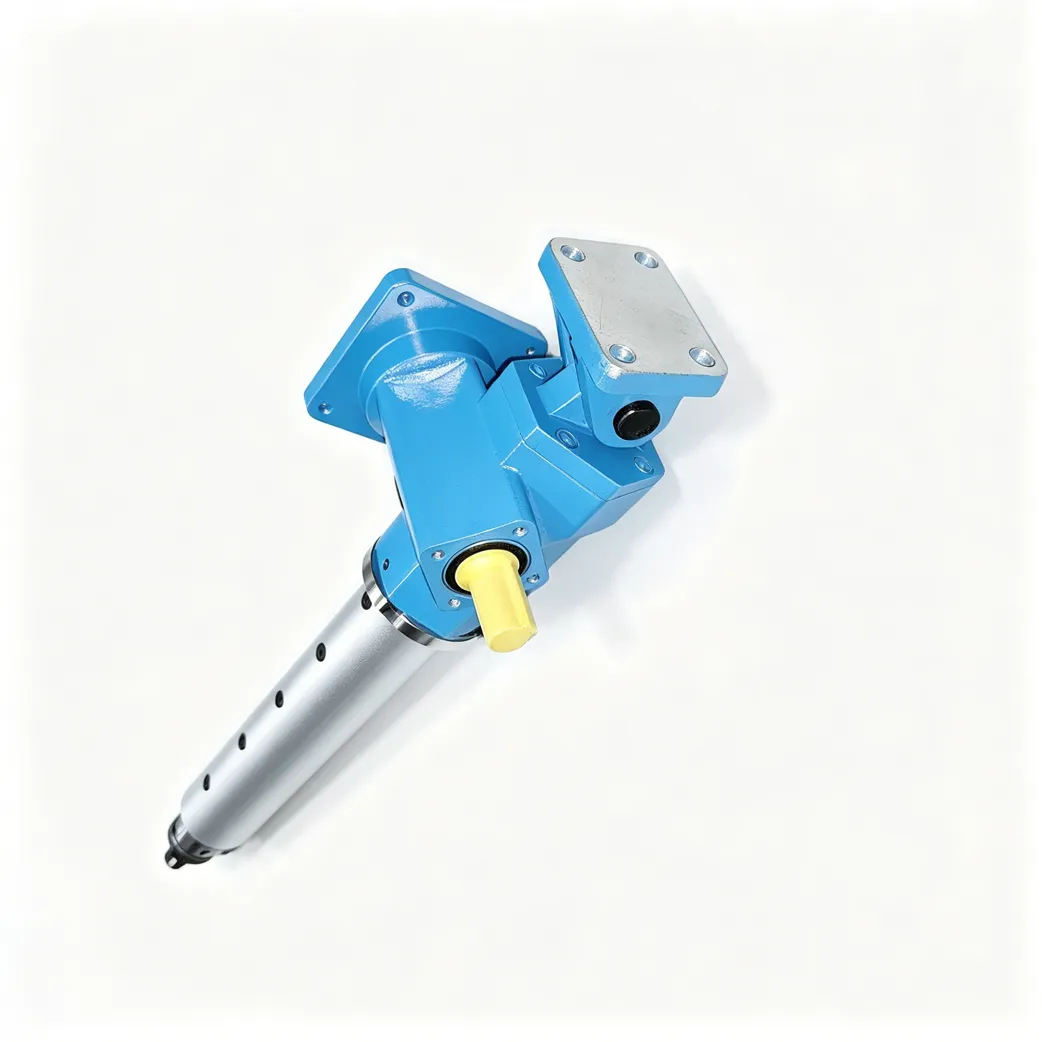

Product Image
Working Principle
Motor Drive
The built-in high-performance motor starts running upon receiving electric control signals and provides stable and continuous power output.
Speed Reduction
The precision reduction mechanism amplifies the motor torque, converting high-speed, low-torque rotation into low-speed, high-torque output.
Lead Screw Transmission
Power after deceleration drives the lead screw to rotate. The nut converts rotational motion into linear reciprocating motion of the actuator.
Actuator Output
The actuator main body moves linearly along the guide mechanism and transmits power to the load to complete pushing, pulling or lifting actions.
Product Advantages
Powerful Thrust:Fitted with a high-torque motor and a precision reduction mechanism, High Force Electric Linear Actuator delivers strong thrust to drive heavy loads steadily.
Smooth Operation:The lead screw transmission structure ensures steady and jitter-free movement. It runs consistently and smoothly even at low speeds without stalling.
Precise Control:Multiple control modes enable accurate positioning. The stroke and speed can be flexibly adjusted according to actual requirements, offering high precision.
Safety & Reliability:Built-in overload protection and limit locking devices will stop the actuator automatically when abnormalities occur, effectively preventing equipment damage and potential safety hazards.
Product Structure
Drive Motor
A high-efficiency motor serves as the power core. It delivers stable and long-lasting power output to ensure reliable long-term operation.
Deceleration Mechanism
A precision gear or worm gear reducer converts the motor's high rotational speed into high torque, optimizing the overall thrust performance.
Transmission Lead Screw
High-precision trapezoidal or ball lead screws efficiently convert rotational motion into linear motion, guaranteeing accurate and smooth operation.
Actuator Main Body
Manufactured from high-strength alloy with special surface treatment, it features excellent wear resistance and corrosion resistance and remains free of deformation after long-term service.
Functional Features
Adjustable Thrust
Products with different thrust ratings are available to match the power requirements of various push-pull applications based on actual load conditions.
Forward & Reverse Control
It supports free switching between forward and reverse rotation to realize bidirectional movement, meeting operational demands in diverse working conditions.
Limit Protection
The built-in limit device stops the actuator automatically once it reaches the preset position to prevent over-travel and protect both equipment and operators.

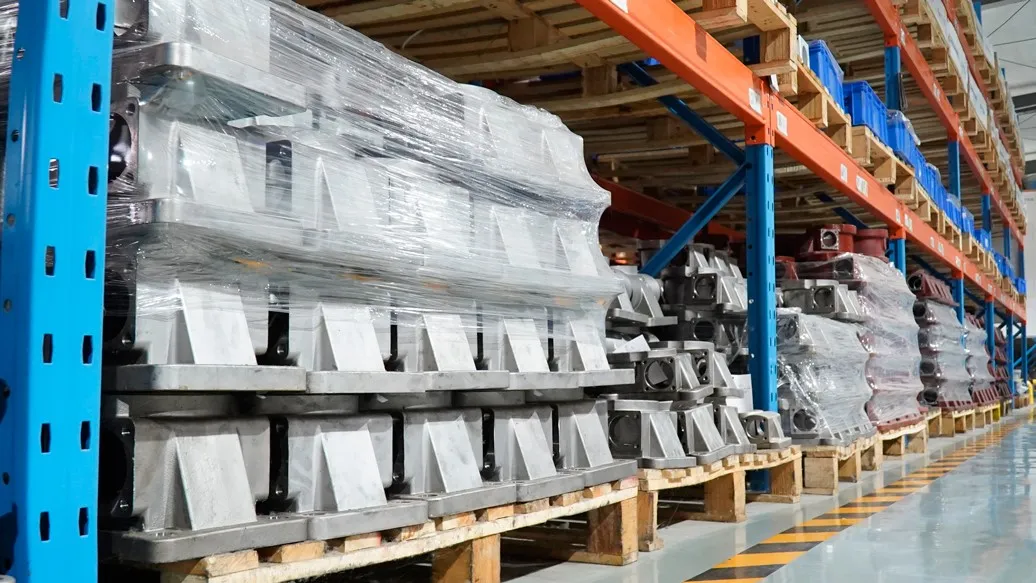

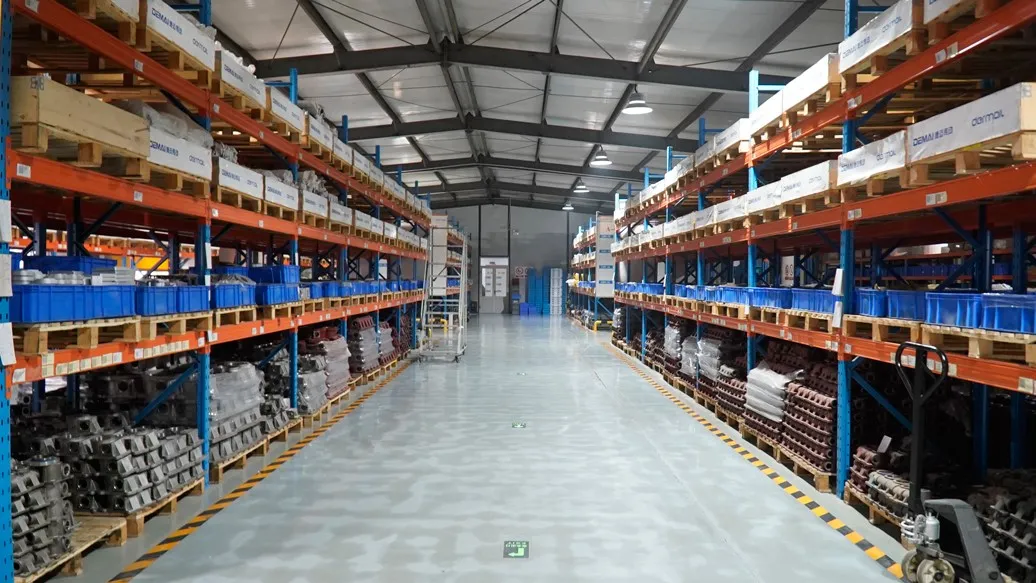

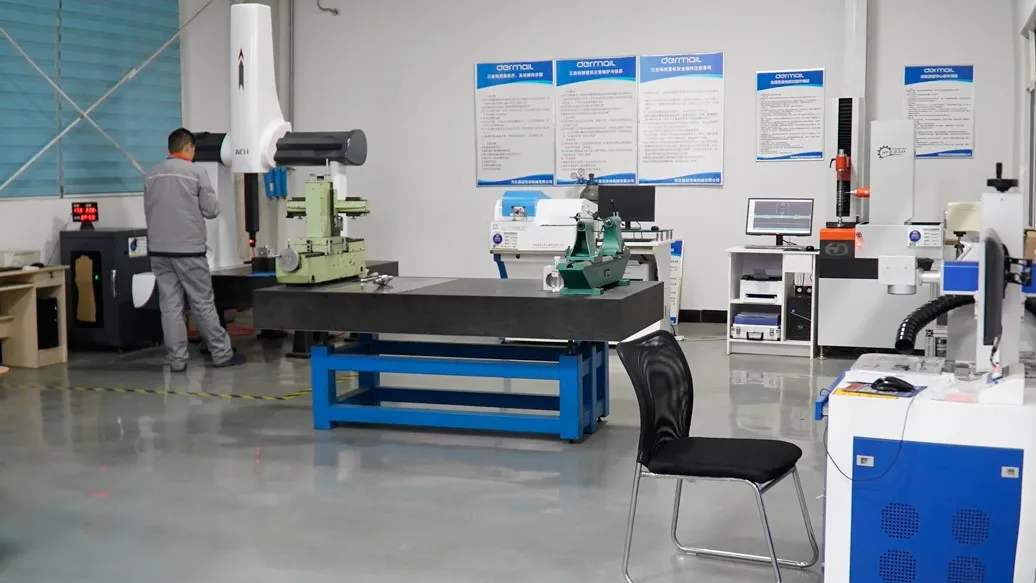

Factory Environment
Maintenance Guidelines
Regularly wipe dust and stains off the exterior surface with a soft cloth. Keeping the unit clean prevents corrosive substances from damaging its surface.
Apply dedicated lubricant to the lead screw, nut and guide parts on a regular schedule. Proper lubrication can effectively extend the product service life.
Periodically check all connecting bolts and fasteners. Tighten loose components in a timely manner to avoid operational anomalies.
