Products Description
The High Repeatability Servo Electric Cylinder is a high-performance linear actuator integrating servo motors, precision transmission assemblies and ball screws. It is characterized by precise position control, fast response and stable thrust output. Superior to traditional pneumatic and hydraulic cylinders in running noise, maintenance convenience and energy efficiency, it can serve as a cost-effective substitute for equivalent imported products. Widely used in industrial automation, robotics, precision assembly and testing & inspection sectors, our company boasts mature R&D and production capabilities. We customize thrust, stroke and speed according to customers' working conditions and provide complete linear motion solutions to help clients upgrade their production automation level.

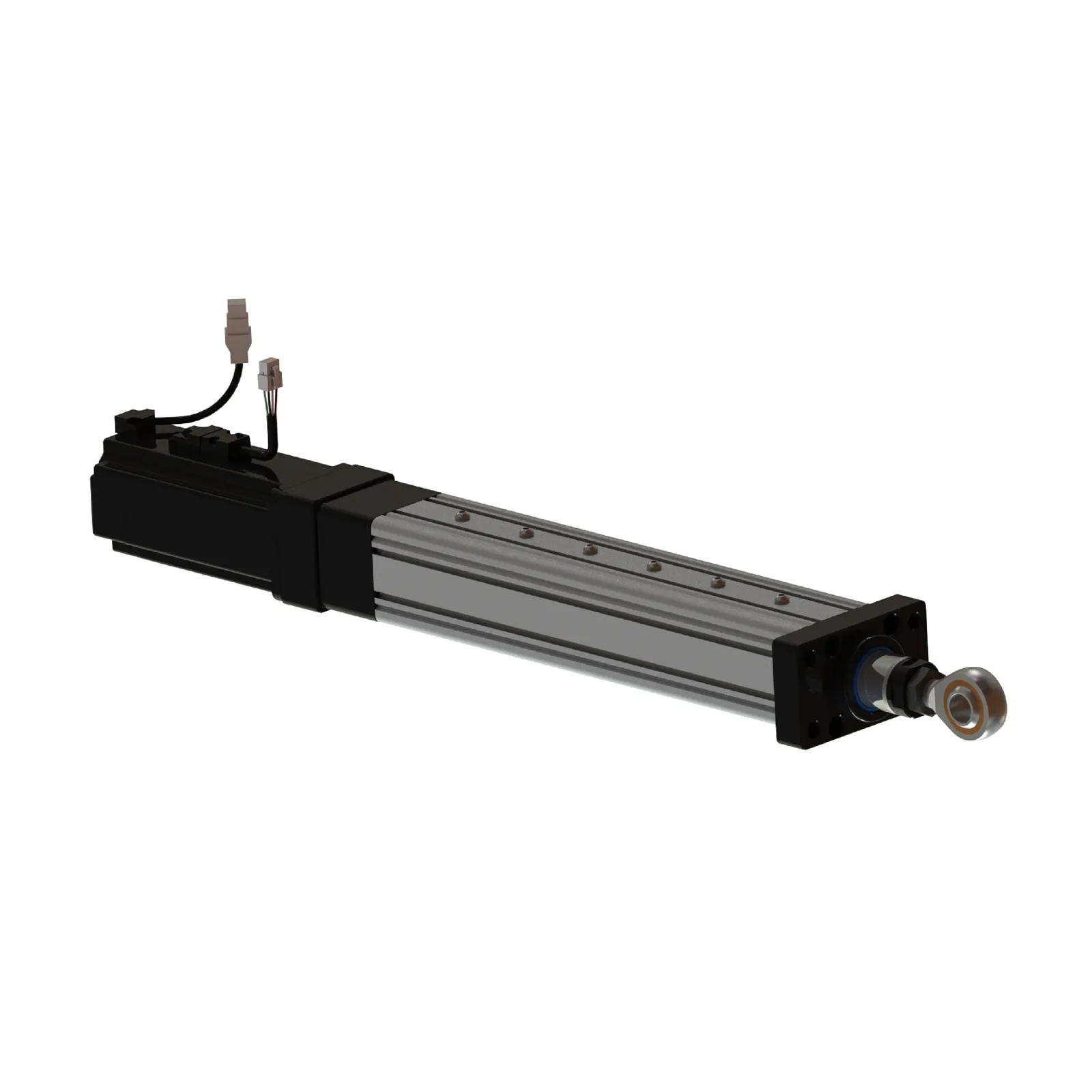

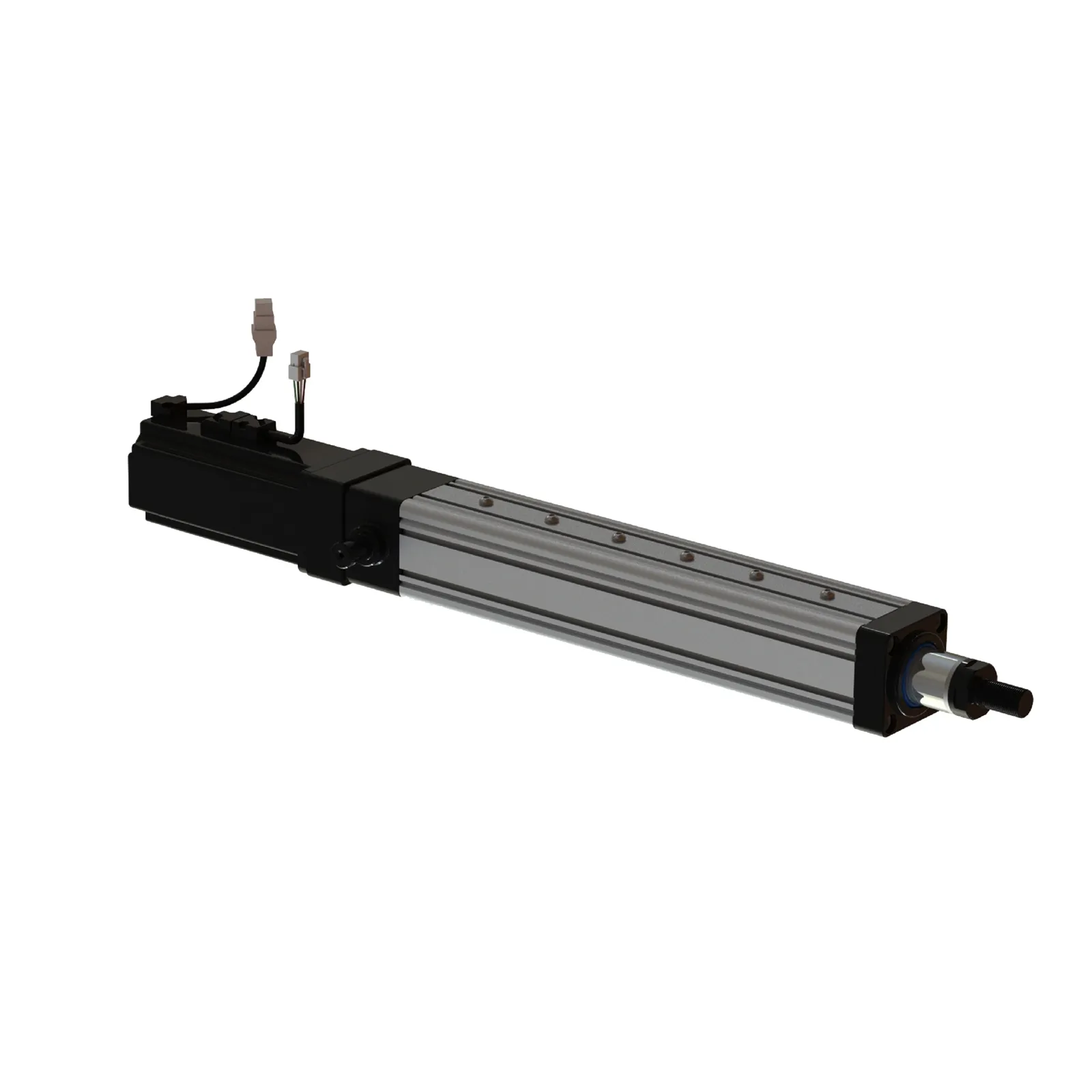

Product Image
Product Advantages
Superior Precision
Adopting precision screw transmission, the High Repeatability Servo Electric Cylinder achieves high positioning accuracy and reliable repeat positioning performance to satisfy strict precision control requirements.
Fast Response
Its built-in servo drive system delivers quick response and smooth, shock-free startup and shutdown, enabling high-speed and high-precision control of reciprocating linear motion.
Quiet Operation
The fully electric structure eliminates hydraulic operating noise and pneumatic exhaust noise, creating a clean and quiet working environment ideal for noise-sensitive applications.
Low Maintenance Cost
With no hydraulic or pneumatic pipeline layout required, the product needs almost no routine maintenance, cutting operational expenses and reducing equipment downtime.
Working Principle
Driven by a servo motor, the High Repeatability Servo Electric Cylinder converts rotary motion into reciprocating linear motion via precision ball screws. A high-resolution encoder feeds real-time position data back to the servo driver, which executes closed-loop control against preset commands to precisely adjust running speed, position and output thrust and complete high-precision linear driving.
Production Technology
Precision Machining:Key transmission components are processed on high-precision CNC machine tools to minimize the fitting clearance between screws and nuts, ensuring transmission accuracy and long service life.
Servo Drive Configuration:Equipped with premium servo motors and drivers paired with advanced control algorithms to realize precise regulation of speed, position and torque.
Sealing Technology:A multi-layer sealing structure is adopted to block dust and foreign debris intrusion and guarantee stable cylinder operation under harsh working conditions.
Optimized Thermal Design:Improved heat dissipation layout for motors and drivers prevents performance degradation under long-duration continuous high-load operation.
Precautions
Avoid Overloading
Never operate beyond rated thrust rating; sustained overload will damage internal screws and motors and compromise precision and service life.
Dustproof & Waterproof Measures
Although fitted with integrated sealing, avoid extreme dusty or fully submerged environments; install extra protective accessories if such harsh surroundings are unavoidable.
Prevent Impact & Side Load
Lateral force and violent external impact are prohibited to avoid damage to internal precision components and subsequent accuracy failure.
Functional Features
Precise Positioning:It supports high-accuracy position control to reach arbitrary preset target locations reliably with excellent repeat positioning for precision-demanding applications.
Adjustable Force Control:Thrust and running speed can be adjusted in real time per process requirements to adapt to varying loads and working conditions.
Convenient Communication Access:Compatible with multiple mainstream industrial communication protocols, it can be easily connected to PLC and upper control systems for remote monitoring and centralized intelligent management.
Multi-layer Safety Protection:Built-in protection against overload, overcurrent and overtravel triggers automatic shutdown and fault alarms to protect equipment and operating personnel.

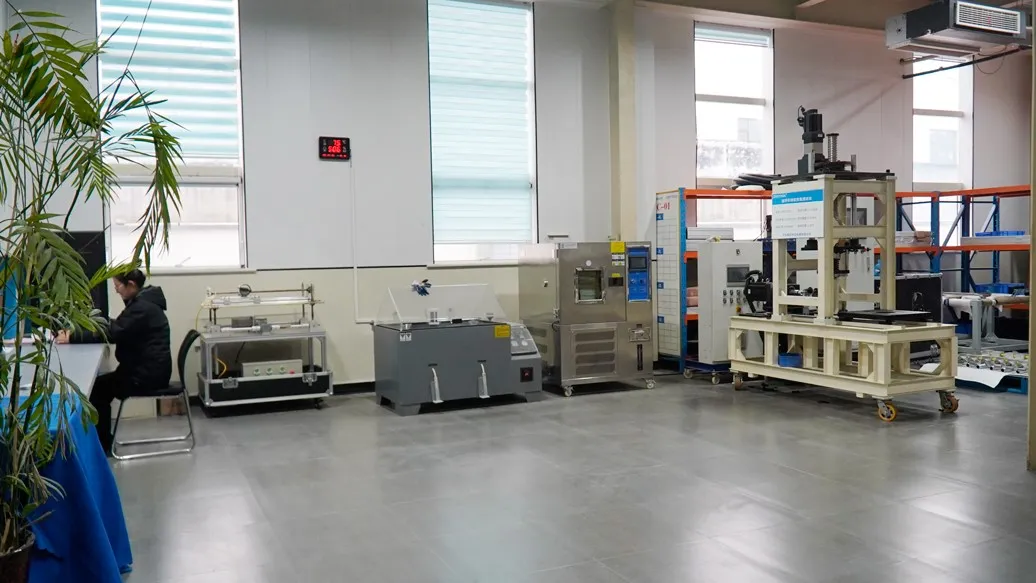

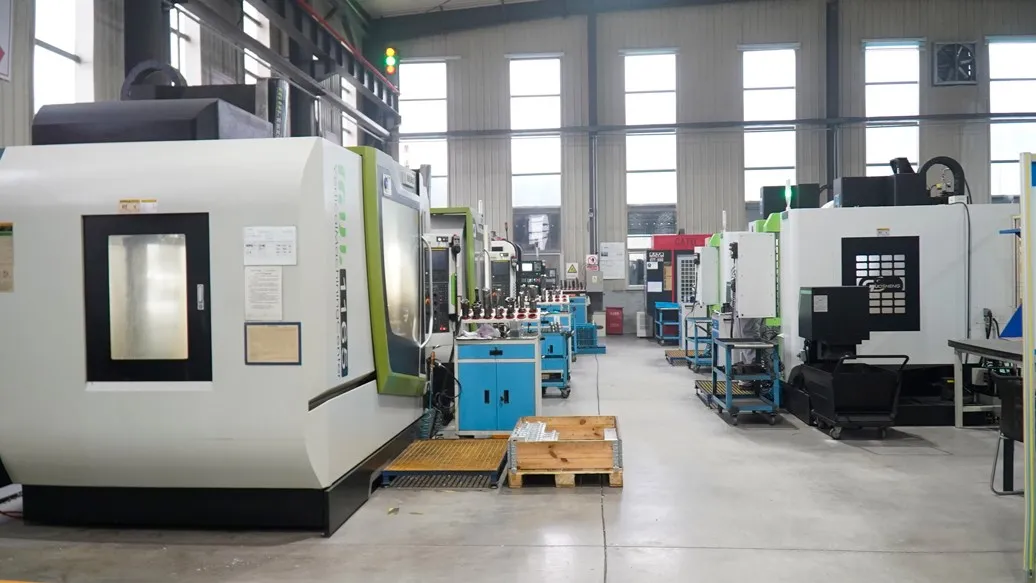

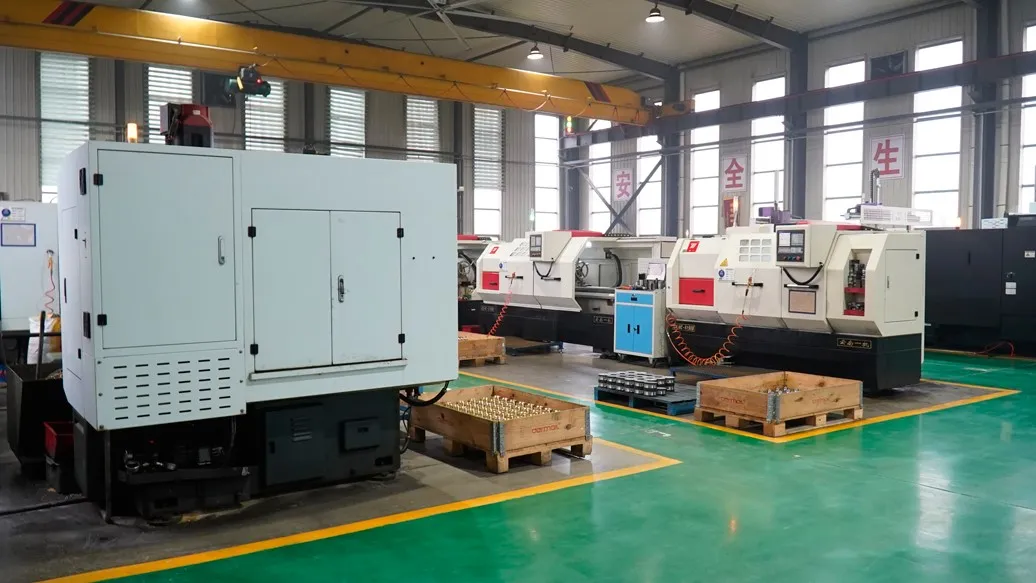

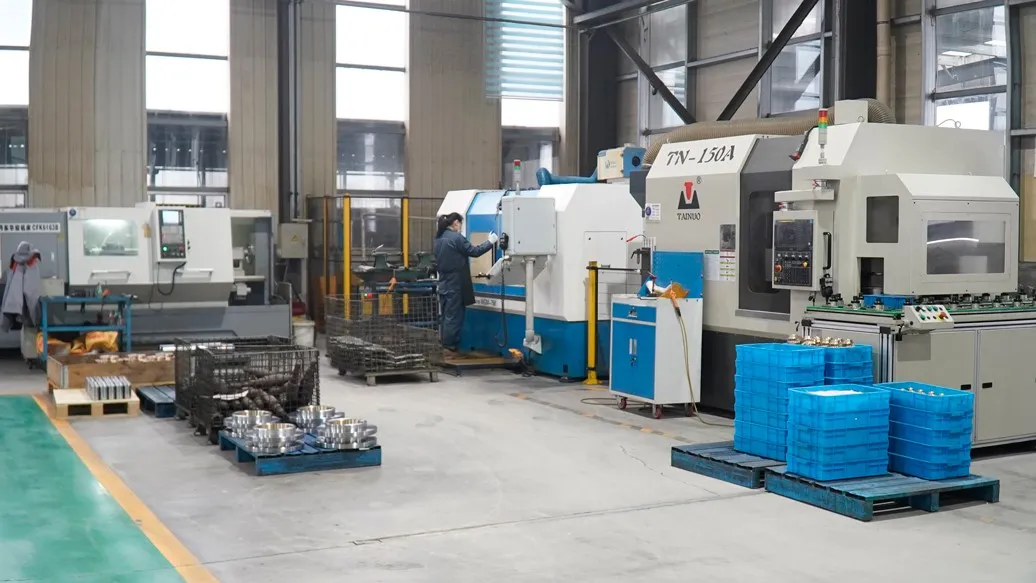

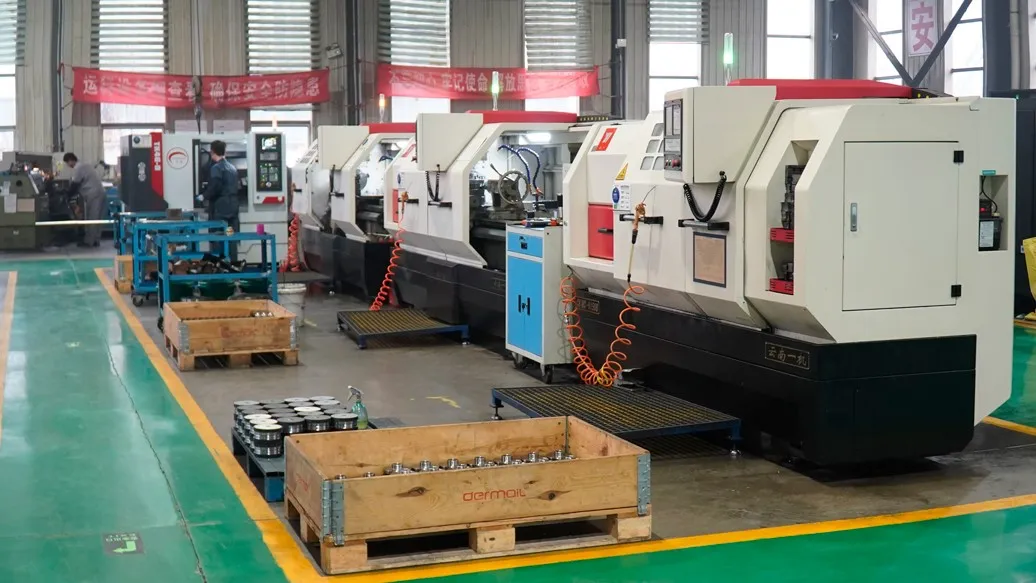

Factory Environment
